description

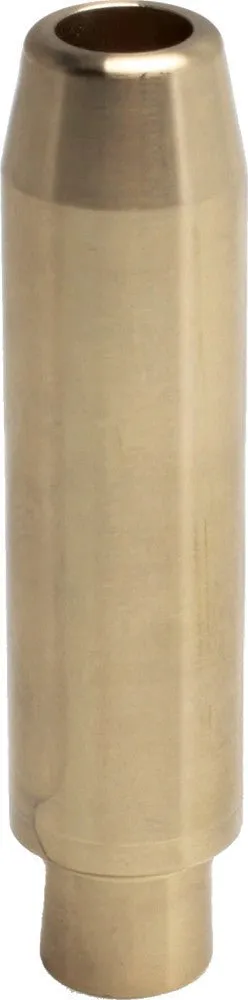

We choose to use C630 nickel bronze as a material to make valve guides because of its ideal characteristics for the application. The 4-5 percent nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. Guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, promoting high performance and endurance Outside Dia. : (G): 0.5660in. / 0.004in. A: 0.650in. B: 0.700in. C: 1.150in. D: 1.450in. E: 0 .615in. F: 0.3098in. Note: Special shouldered guide, accepts 0.600in. valve lift. 0.420in. guide top accepts KPMI OEM style seal 20-20620, Steel Clad Viton seal 20-2015, and Solid White PC Style Seal 20-2009.

fitment

• FLH Electra Glide 1985
• FLHR Road King 1994-2004
• FLHRCI Road King Classic 1998-2004
• FLHRI Road King 1996-1997
• FLHRI Road King 2000-2004
• FLHRS Road King Custom 2004
• FLHRSI Road King Custom 2004
• FLHS Electra Glide Sport 1987-1993
• FLHT Electra Glide Standard 1986-1987
• FLHT Electra Glide Standard 1995-2004
• FLHTC Electra Glide Classic 1984-2004
• FLHTCI Electra Glide Classic 1996-2004
• FLHTCU Electra Glide Ultra Classic 1989-1997
• FLHTCUI Electra Glide Ultra Classic 1995-2004
• FLHTI Electra Glide Standard 2003-2004
• FLHX Electra Glide Special 1985
• FLST Heritage Softail 1986-1990
• FLSTC Heritage Softail Classic 1988-2004
• FLSTCI Heritage Softail Classic 2001-2004
• FLSTF Fat Boy 1990-2004
• FLSTFI Fat Boy 2001-2004
• FLSTN Heritage Softail Nostalgia 1993
• FLSTN Heritage Softail Special 1994-1996
• FLSTS Heritage Springer 1997-2003
• FLSTSI Heritage Springer 2001-2003
• FLTC Tour Glide Classic 1984-1991
• FLTCU Tour Glide Ultra Classic 1989-1995
• FLTCUI Tour Glide Ultra Classic 1996
• FLTR Road Glide 1998-2002
• FLTRI Road Glide 1998-2004
• FXD Dyna Super Glide 1995-2004
• FXDB-D Dyna Glide Daytona 1992
• FXDB-S Dyna Glide Sturgis 1991
• FXDC Super Glide Custom 1992
• FXDI Dyna Super Glide 2004
• FXDL Dyna Low Rider 1993-2004
• FXDLI Dyna Low Rider 2004
• FXDS-Conv Dyna Convertible 1994-2000
• FXDWG Dyna Wide Glide 1993-2004
• FXDWGI Dyna Wide Glide 2004
• FXDX Dyna Super Glide Sport 1999-2004
• FXDXI Dyna Super Glide Sport 2004
• FXDXT Dyna Super Glide T-Sport 2001-2003
• FXEF Fat Bob 1985
• FXLR Low Rider Custom 1987-1994
• FXR Super Glide II 1986-1994
• FXRC Low Rider Chrome 1985
• FXRC Low Rider Chrome 1987
• FXRD Sport Glide Grand Touring 1986
• FXRDG Disc Glide 1984
• FXRS Low Glide 1984-1992
• FXRS-Conv Low Rider Sport Convertible 1990-1993
• FXRS-SP Low Rider Sport 1986-1993
• FXRT Sport Glide 1984-1992
• FXSB Low Rider - Belt 1985
• FXST Softail Standard 1984-1990
• FXST Softail Standard 1999-2004
• FXSTB Night Train 1999-2004
• FXSTBI Night Train 2001-2004
• FXSTC Softail Custom 1986-1999
• FXSTD Softail Deuce 2000-2004
• FXSTDI Softail Deuce 2001-2004
• FXSTI Softail Standard 2001-2004
• FXSTS Springer Softail 1988-2004
• FXSTSB Bad Boy 1995-1997
• FXSTSI Springer Softail 2001-2004
• FXWG Wide Glide 1985-1986
• XL1200C Sportster 1200 Custom 1996-2003
• XL1200S Sportster 1200 Sport 1996-2003
• XL883C Sportster 883 Custom 1999-2003
• XL883R Sportster 883 Roadster 2002-2003
• XLH1100 1986-1987
• XLH1200 1988-2003
• XLH883 1986-2003
• XLH883DLX Sportster 883 Deluxe 1986-1995
• XLH883HUG Sportster 883 Hugger 1987-2003
